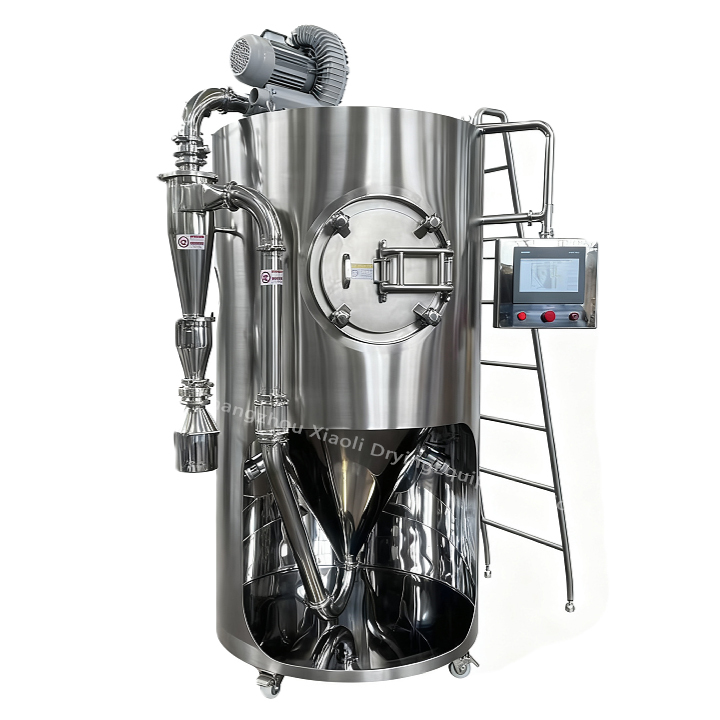

XIAOLI LPG Model High Speed Centrifugal Ceramic Powder Spray Dryer

XIAOLI LPG Model High Speed Centrifugal Ceramic Powder Spray Dryer

Product Description

XIAOLI Ceramic spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

Main Principle:

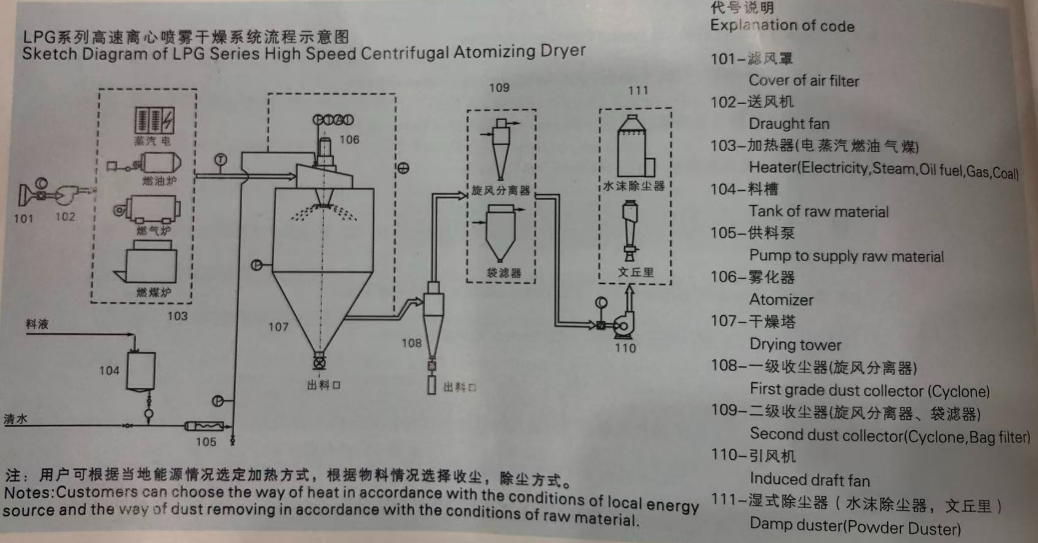

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.

Feature:

1, Ceramic spray dryer / Ceramic powder spray dryer/ powder spray dryer

2, Liquid or slurry drying processor

3, Easy operation and control

4, Stainless steel

It's widely used in foodstuff, Ceramic and chemical industrial, such as whey, egg powder, geltain,coffee powder, white egg, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, Ceramic, gum and acacia etc.

Nowadays, Changzhou Xiaoli Drying Equipment Co., Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Technical Specifications

Note: The rate of moisture evaporation depends on the characteristics of the material, as well as the inlet air temperature and outlet temperature. When the outlet temperature is 90°C, the corresponding moisture evaporation curve is shown in the figure above (provided for selection reference). As products undergo continuous updates, relevant parameters are subject to change without prior notice.

Ordering Information

◎ Feedstock Name and Physical Properties: Solids content (or moisture content), viscosity, surface tension, and pH value.
◎ Properties of Dried Powder: Bulk density, permissible residual moisture content, particle size, and maximum permissible temperature.
◎ Production Capacity: Required output and daily operating hours.
◎ Available Energy Sources: Steam pressure and supply volume; electrical capacity; available supply of coal, oil, or gas.
◎ Control Requirements: Whether automatic control is required for inlet and outlet temperatures.
◎ Powder Collection Requirements: Whether a bag filter is required; environmental regulations regarding exhaust gas emissions.
◎ Other Special Requirements.

Why Choose XIAOLI

International high quality certification product chain

Manufacturer, more reasonable price

Solid technical support and after-sales service

Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)

Exports to more than 20 countries and regions, good customers feedback

One-stop service, customized exclusive project feasibility report
